Question 1

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <fcntl.h>

void error()
{
  perror("pmain");
  exit(1);
}

int main()
{
  int p1[2];
  int p2[2];
  int fd, status;

  if (pipe(p1) < 0) error(); /* Set up pipes */
  if (pipe(p2) < 0) error();

  if (fork() == 0) {

    fd = open("f1.txt", O_RDONLY);   /* Standard in coming from f1.txt */
    if (fd < 0) error();
    dup2(fd, 0);
    close(fd);

    dup2(p1[1], 1);                  /* Standard out to p2's standard in */
    close(p1[0]);
    close(p1[1]);

    dup2(p2[0], 10);                 /* fd 10 coming from the pipe */
    close(p2[0]);
    close(p2[1]);

    execlp("p1", "p1", "200", NULL);
    error();
  }

  if (fork() == 0) {

    dup2(p1[0], 0);                /* Standard in from p1's standard out */
    close(p1[0]);
    close(p1[1]);

    dup2(p2[1], 11);              /* Fd 11 going to the pipe */
    close(p2[0]);
    close(p2[1]);

    execlp("p2", "p2", "fred", NULL);
    error();
  }

  close(p1[0]);                   /* Close extraneous fd's */
  close(p1[1]);
  close(p2[0]);
  close(p2[1]);

  wait(&status);                  /* Wait for the children to exit */
  wait(&status);
  exit(0);
}

Grading: Two points for each of the folling. It wasn't just that you had to have them; they had to be in correct place.

• Two forks
• Two pipes
• Setting up stdin of p1
• Setting up stdout of p1
• Setting up fd 10 of p1
• Setting up stdin of p2
• Setting up fp 11 of p2
• Lots of closes
• Exec & Cardinal Sin
• Waits in the parent

Question 2

1. A mutex.
2. n: The number of processes that you want running.
3. running: The number of processes that are actually running.

typedef struct {
  pthread_mutex_t *lock;
  int n;
  int running;
} Info;

void *waiter(void *arg)
{
  Info *I;
  int status;

  I = (Info *) arg;

  while (1) {
    wait(&status);
    pthread_mutex_lock(I->lock);
    I->running--;
    if (I->running < I->n) {
      if (fork() == 0) { execlp("experiment", "experiment", NULL); exit(1); }
      I->running++;
    }
    pthread_mutex_unlock(I->lock);
  }
}

The the main() thread makes the scanf() call, and if necessary, it forks off experiment processes. It's a good idea to hold the mutex here. Why? Because you don't want the waiter thread messing with I.running during this process -- it's safer to lock out the waiter thread. Before unlocking the mutex, it should make sure that I.running and I.n have the correct values.

There's a slightly subtle issue in that you don't want to fork off the waiter thread until you've created the first experiment process. This is because wait() returns instantly when you have no children. I don't like those semantics, but they didn't consult me. Here's the code (all of it is in skipex.c)

main()
{
  Info I;
  pthread_t tid;
  int new_n, i;

  I.lock = (pthread_mutex_t *) malloc(sizeof(pthread_mutex_t));
  pthread_mutex_init(I.lock, NULL);
  I.n = 0;
  I.running = 0;

  while (1) {
    if (scanf("%d", &new_n) != 1 || new_n <= 0) exit(0);
    pthread_mutex_lock(I.lock);
    while (I.running < new_n) {
      if (fork() == 0) { execlp("experiment", "experiment", NULL); exit(1); }
      I.running++;
    }
    if (I.n == 0) pthread_create(&tid, NULL, waiter, (void *) &I);
    I.n = new_n;
    pthread_mutex_unlock(I.lock);
  }
}

You can test this using a simple experiment.c that sleeps for a random period of time between 1 and 5 seconds, and prints its status to logfile.txt. Simply check the output of ps to see if the correct number of processes are running.

I'm sure y'all will be happy to know that my original version of this question used system("experiment &"), which resulted in fork-bombing my Mac. Ha ha.

Grading: Out of 20. I simply assigned a grade which I felt assessed how well your program solved the problem.

Question 3

The first approach: The key observation here is that if open a pipe to a child process and try to read from it, the read call will return when the child dies, because the write end is gone. So, you will maintain a list of read fd's to your children. You can use a FD_SET for this -- isn't that handy. When you fork off a child, you set up a pipe so that the child has the write end open and the parent has the read end open. You add the read fd to the FD_SET. You also add file descriptor 0 to the FD_SET.

The main loop has the parent calling select() on a copy of the FD_SET. If you see that file descriptor 0 has something to read, then you read a new value of n and perhaps fork off new children. If you see that another fd is set, then you clear it from the FD_SET and call wait(). You can be guaranteed that the wait() call will return. If necessary, you fork off another child.

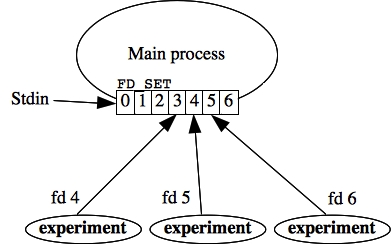

Here's a picture when n equals three.

The code is in skipex-386.c. In some respects, its easier than the pthread code

The second approach. The second approach had two processes. Call them the parent and child. The parent has two pipes -- one going to and one coming from the child. It calls select() on the pipe coming from the child and on standard input. When it reads n, it simply stores it. When it reads from the pipe, it reads a request from the child for n, and sends n to the child as a response.

The child, on the other hand, first requests n, which it gets once the parent reads it for the first time. At that point, the child forks/execs experiment processes and calls wait(). Each time that wait() returns, the child requests n from the parent. That way, the child knows how many more experiment processes to create.

A few of you tried this approach with one pipe, having the parent call wait, but having the child fork off the experiments. This doesn't work , because the parent can't wait for threads created by the child. Instead, you need two pipes, so that the two threads can have two-way communication between them.

This approach is a little flawed, because when the user changes n, he/she has to wait for an experiment process to die before the extra threads are created. Grading: Out of 20. This is the same as the previous problem. It was easier for me to simply look at your solution wholistically and assign a grade according to how well your solution worked..

Question 4

• We allocated 24 bytes for ip (16 for the array and 8 bytes for malloc's information). This calls sbrk(8192) and carves off 24 bytes for ip. The remaining 8168 bytes go on the freelist.
• We set ip[0] to ip[3] to 5-8.
• We allocated 72 bytes for s 9 (61 for the array, 3 bytes padding, and 8 bytes for malloc's information). The freelist chunk's size is 8096.
• We allocated 24 more bytes vor i2 (12 for the array, 4 bytes padding and and 8 bytes for malloc's information). The freelist chunk's size is now 8072.
• We set i2[0] to i2[2] to 10-12.
• We freed s. This puts the 72-byte block onto to the front of the freelist.
• We allocated 24 bytes for s (9 for the array, 7 bytes padding and 8 bytes and 8 bytes for malloc's information). This carves 24 bytes off the 72-byte chunk in the front of the freelist, and that chunk's size becomes 48 bytes.
• We set s to "ABCDEFGH".

Grading Again, out of 20, allocated as follows:

• Specifying IP's size: 2 points
• Specifying IP's bytes: 2 points
• Specifying S's Size: 2 points
• Specifying S's bytes: 2 points
• Specifying The free list node between S and i2: Size: 2 points
• Specifying The free list node between S and i2: Flink: 1 point
• Specifying The free list node between S and i2: Blink: 1 point
• Specifying I2's size: 2 points
• Specifying I2's bytes: 2 points
• Specifying The last freelist node after I2: Size: 2 points
• Specifying The last freelist node after I2: Flink: 1 point
• Specifying The last freelist node after I2: Flink: 1 point
