Questions 4-7
CS140 Final Exam: May 10, 1999

Question 4 - 5

Suppose the tree below is a splay tree:

Suppose you insert a node with a key of 64 into the tree.

Question 4: How many total rotations will do you? (Count a double rotation as two rotations)
Question 5: Draw the tree that results after 64 is inserted.

Questions 6 - 7

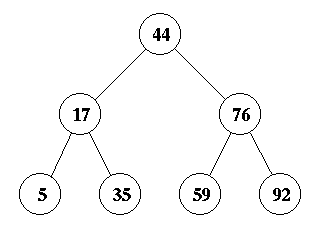

Suppose the tree below is an AVL tree:

Question 6: Suppose you insert a node with a key of 99 into the tree. Draw the resulting AVL tree.
Question 7: Instead, suppose that you insert a node with a key of 64 into the tree pictured above. Draw the resulting AVL tree.
