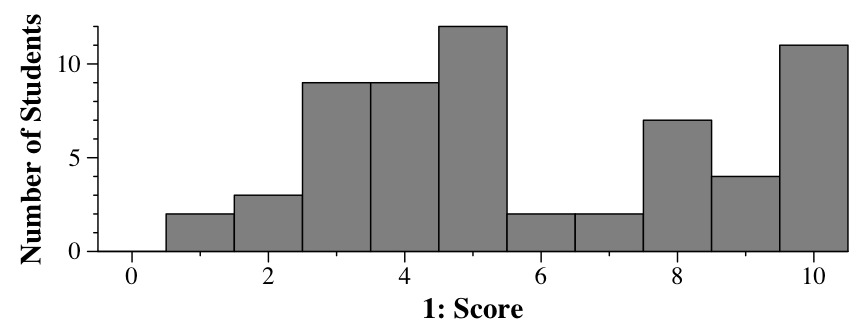

Question 1 - Basic Programming - 10 Points

#include <vector>
#include <deque>
#include <string>
#include <iostream>
using namespace std;

vector <string> get_n_lines(int n)
{
  vector <string> rv;
  deque <string> q;
  string s;
  int i;

  while (getline(cin, s)) {
    q.push_front(s);
    if (q.size() > n) q.pop_back();
  }
  for (i = 0; i < q.size(); i++) rv.push_back(q[i]);
  return rv;
}

Grading

• Did you use a correct data structure? Deque, Queue or List was worth 6 points, Vector and Stack were worth three points. Set was worth two, and anything else zero.
• Was your solution O(n) in space? This was worth two points. In other words, even if you used a Deque, if you simply created it with push_front() and didn't make sure that its maximum size was n, you didn't get these two points.
• Did you set up a return value of the correct type and return it? One point.
• Did you create the return value correctly? One point.

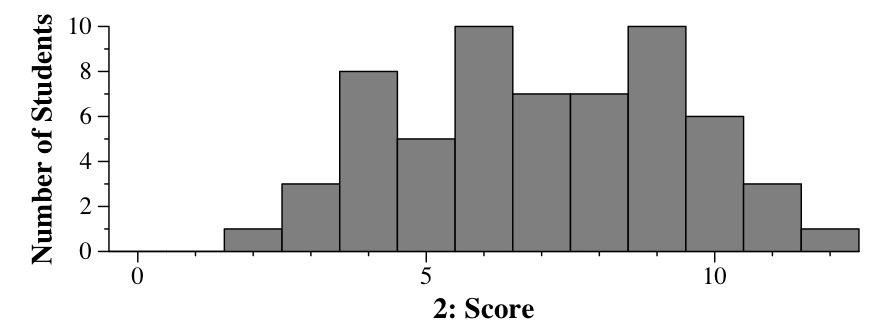

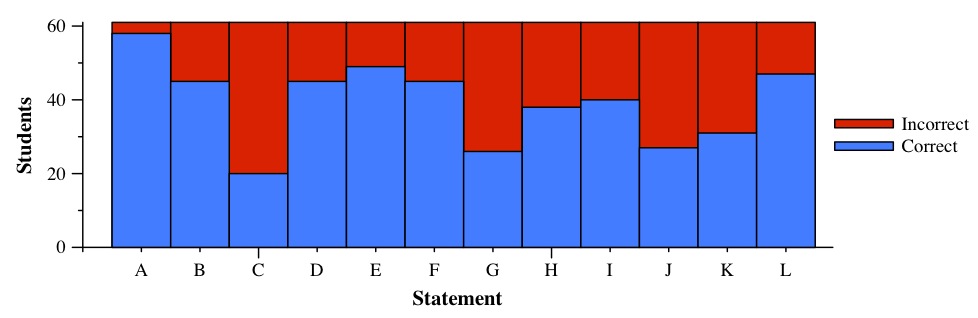

Question 2 - Basic Data Structures and Big-O - 12 Points

• A: Finding an item in a AVL tree with n items: O(log(n))
• B: Erasing the first item from a linked list with n items: Linked lists work in constant time: O(1)
• C: Performing a rotation on a node in an AVL tree with n items: Rotations manipulate a constant number of pointers: O(1)
• D: Deleting an item from an AVL tree with n items. O(log(n))
• E: Finding an item in a regular binary search tree with n items. The search tree can be a search line: O(n)
• F: Erasing the first item from a deque with n items. Deques do this in constant time: O(1)
• G: Deleting an item from a set with n items. Sets and maps are just like AVL trees: O(log n)
• H: Finding an item that is in a hash table with n items that had no collisions when the items were inserted. If there were no collisions, then every key is at its hash value in the hash table. Therefore, it will take constant time to find it: O(1)
• I: Calling Push() on a stack with n items. Again, O(1) -- see the answer to Question 5.
• J: Inserting an item into a map with n items. O(log(n))
• K: Erasing the first item from a vector with n items. Vectors don't support this in constant time: O(n)
• L: Finding an item in a linked list with n items. To find an item in a linked list, you have to traverse the list from the front: O(n)

• "1" = O(1)
• "l" = O(log(n))
• "n" = O(n)
• "nl" = O(n(log(n))
• "2" = O(n²)
• "!" = O(n!)

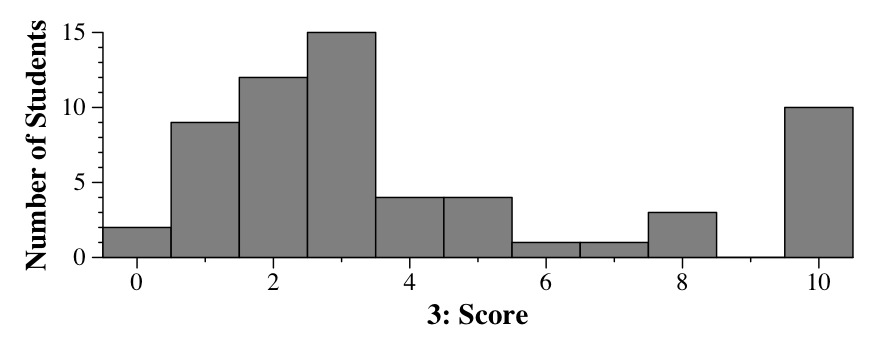

Question 3 - Were you in this class? - 10 Points

void Solve(Towers *t, int from, int to, int npieces)
{
  int i, other;

  if (npieces == 1) {
    t->Make_Move(from, to);
    return;
  }

  for (i = 0; i < 3; i++) if (i != from && i != to) other = i;
  Solve(t, from, other, npieces-1);
  t->Make_Move(from, to);
  Solve(t, other, to, npieces-1);
}

Grading was subjective here. I gave you some credit if you at least gave me a base case and some recursion, but not much if it wasn't too cogent.

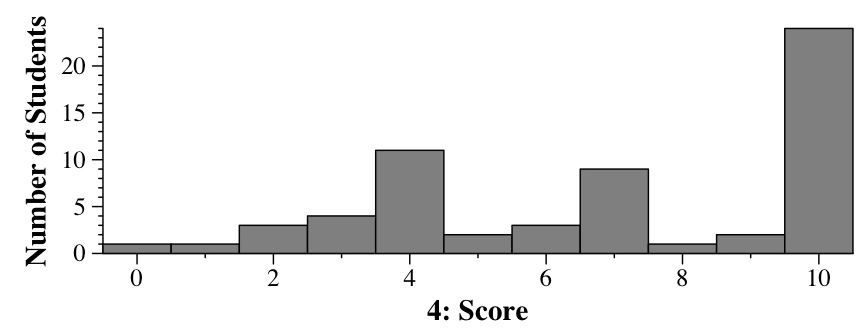

Question 4 - Binary search trees 10 points

Case 1: The node has no children (it's a leaf node). You can simply delete it.

Case 2: The node has just one child. To delete the node, replace it with that child.

Case 3: The node has two children. In this case, you find the node in the tree whose value is the greatest value less than (or equal to) the node's value. That will be the rightmost node in the subtree rooted by the left child. That node will not have a right child. First, delete it. Then use it to replace the node that you are deleting.

Grading

• Case 1: 3 points
• Case 2: 3 points
• Case 3: 4 points

Question 5 - Stack em up - 10 points

void Stack::Push(string s)
{
  Stacknode *newnode;

  newnode = new Stacknode;
  newnode->s = s;
  newnode->next = top;
  top = newnode;
}

string Stack::Pop()
{
  string rv;
  Stacknode *oldtop;

  if (top == NULL) {
    cerr << "Error: pop() called on an empty stack\n";
    exit(1);
  }

  oldtop = top;
  top = oldtop->next;
  rv = oldtop->s;
  delete oldtop;
  return rv;
}

Grading

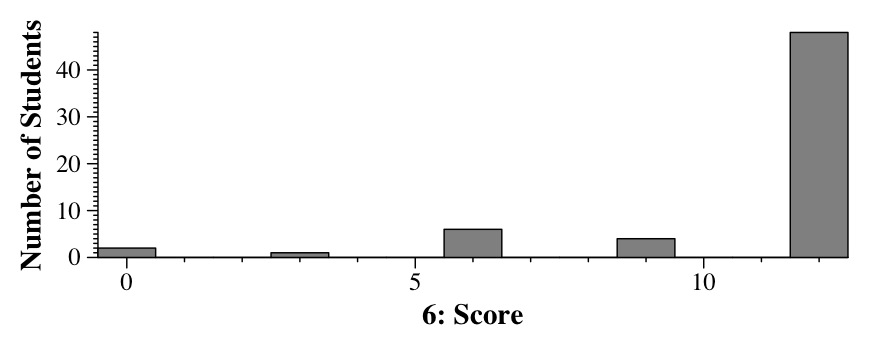

Question 6 - Traversals - 12 Points

• Tree 1: Preorder: J D H F T P L K N R V X -- k
• Tree 1: Postorder: F H D K N L R P X V T J -- g
• Tree 2: Preorder: J F D H R L K P N V T X -- m
• Tree 2: Postorder: D H F K N P L T X V F J -- d

Grading

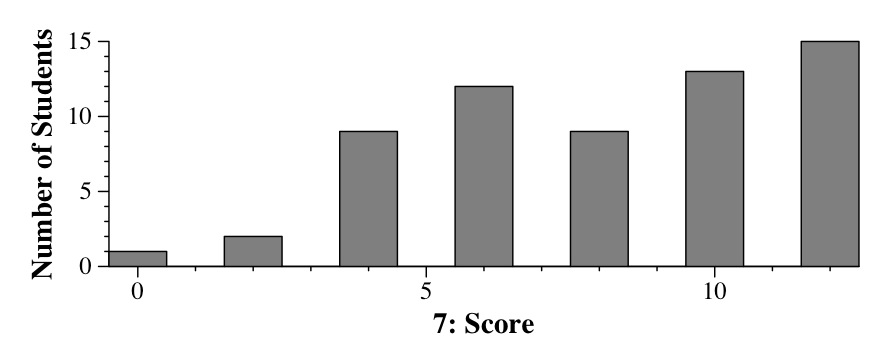

Question 7 - Traversals - 12 points

Tree 2: When you delete M, you replace it with L. That tree is fine, so the answer is J.

Tree 3: When you insert X, you get the left tree below. That is imbalanced at node T, and it's a Zig-Zig, so you must perform a rotation about node V to get the right tree. The answer is L.

Tree 4: When you delete G, you get the left tree below. That is imbalanced at node J, and it's a Zig-Zag, so you must perform a double rotation about node P to get the right tree. The answer is F.

Tree 5: When you delete W, you get the left tree below. That is imbalanced at node V, and it's a Zig-Zig, so you must perform a single rotation about node R to get the right tree. The answer is L.

Tree 6: When you delete B, you get an imbalance about D, which you fix by a double-rotation about G. That is pictured to the left. That is imbalanced at node J, and it's a Zig-Zag, so you must perform a double rotation about node P to get the right tree. The answer is F.
