CS202 Final Exam - May 11, 2023 - Answers and Grading

I will explain answers to the questions on the example exam. When questions come from banks, I'll also give the proper answers to the bank questions.

Question 3

This question came from a bank. When you call push(36), you put 36 as the last element on the heap, and then percolate up. That will swap 36 with 44 and 38. It will end up where the 38 was, which is index 13.

The last value of the vector will be 44, which was swapped into the last value when you did the percolate-up on 38.

When you call Pop() on the heap, 14 will be returned, and 33 will be moved onto the root. You then percolate down. You will swap 33 with 15 (index 2), then with 24 (index 6), and then you stop, because the next two children are 67 and 66. The answer is 6.

The first value will be 15, because you swapped 33 with 15 as the first step of percolating down.

LFN will go between JRC and LPH. LPH has a left child already, so it will have to be the right child of JRC. The answers are "JRC" and "R". You could also go from the root:

When you delete the root, you replace it with the greatest node in the left subtree. That is the node right before ILD, which is GOX.

Now, to match correct answers, for the first part, look in your exam that I sent in your "grappling hook". It will show the filename of the JPG for the heap picture. Look at the first five characters of that filename. Here are correct answers to the first question:

5dae0-12
70e5e-11
e701c-12
e855a-10

And the second question:

5dae0-44
70e5e-49
e701c-74
e855a-86

For the remaining questions, look at the filename for the "vector form" of the heap. Again, look at the first five characters of the filename. Here are the answers to the remaining questions:

Third Question:
 5dae0-6
 64fb3-6
 70e5e-6
 e701c-6
 e855a-4
Fourth Question:
 5dae0-15
 64fb3-4
 70e5e-6
 e701c-5
 e855a-6
Fifth Question:
5dae0-JRC
64fb3-OEI
70e5e-MRD
e701c-YJQ
e855a-GHO
Sixth Question:
  5dae0-R
  64fb3-R
  70e5e-R
  e701c-L
  e855a-R
Seventh question:
5dae0-GOX
64fb3-NNJ
70e5e-JZK
e701c-SHF
e855a-MVL

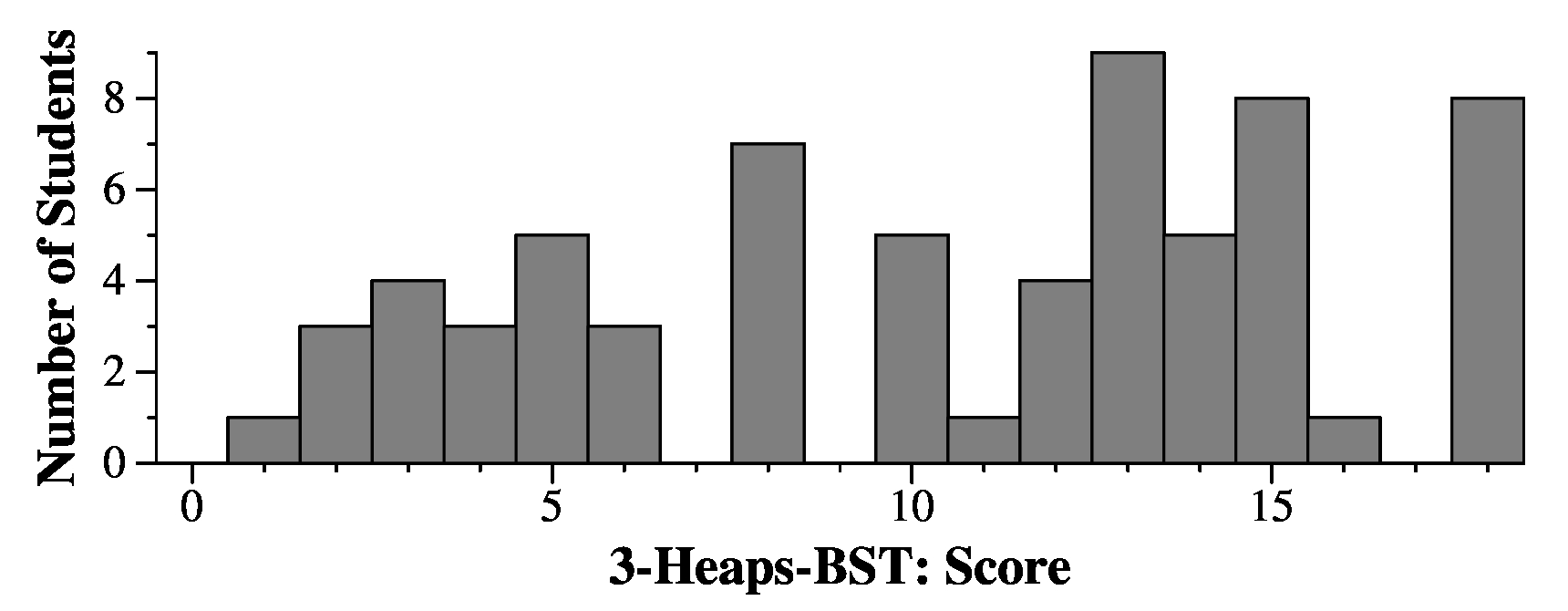

Grading

2.5 for the first 6 questions. 3 for the last question.


Question 4

The copy constructor needs to allocate v, and then copy it from f. Here are three implementations:

Fred::Fred(const Fred &f)
{
  v = new vector <int>;
  *v = *(f.v);
}
Fred::Fred(const Fred &f)
{
  int i;
  v = new vector <int>;
  for (i = 0; i < f.v->size(); i++) {
    v->push_back(f.v->at(i));
  }
}
Fred::Fred(const Fred &f)
{
  v = new vector <int>;
  *this = f;
}

If you didn't allocate v, you lost significant points, because that's the point of the copy constructor. You also lost points by doing v = f.v, because that's just copying a pointer, and will lead to the same disaster scenario as not implementing a copy constructor.

The assignment overlead needs to copy the vector too. This time, however, the vector is allocated and may have elements in it, so you have to clear it before you copy it. Here are two implementations:

Fred& Fred::operator= (const Fred &f)
{
  *v = *(f.v);
  return *this;
}
Fred& Fred::operator= (const Fred &f)
{
  int i;

  v->clear();
  for (i = 0; i < f.v->size(); i++) {
    v->push_back(f.v->at(i));
  }
  return *this;
}

I gave partial credit here, but one thing that lost you significant points was mixing types: "f = new Fred", or "v = *f".

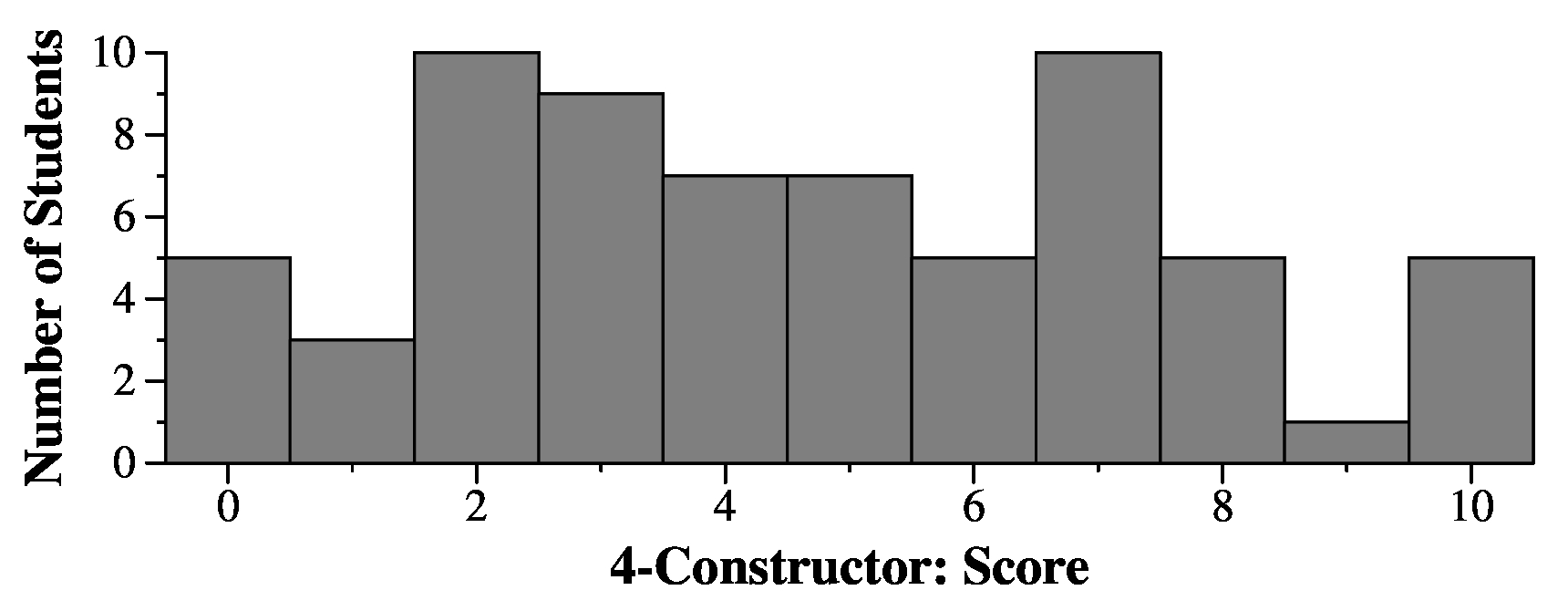

Grading

5 points for each.


Question 5 - Running Times

These were the same 16 questions, but in different orders. Here's the order in which I graded (so your grades have the questions in this order):
  1. A vector starts with n2 elements. What is the running time of calling push_back() 2n times on the vector? Answer: push_back() is O(1), so this is O(n). Full credit to O(n). 0.5 points to answers like O(2n).

  2. A deque starts with 0 elements. What is the running time of calling push_front() n times on the deque? Answer: push_front() on a deque is O(1), so this is O(n). Full credit to O(n). 0.5 points to answers like O(2n).

  3. I want to store n integers. Then, I will read n integers from standard input, and for each integer, print whether or not I have stored that integer. What is the running time of my best implementation? Answer: The best implementation here is an unordered_set() (or hash table). Each store and find is O(1), so the answer is O(n). The next best implementation is a set, where the answer is O(n log n). I gave that answer 0.5 points. Answers like O(2n) also received 0.5 points.

  4. Assume that m < n. I have n integers whose values are between -m and m. What is the running time of storing those n integers in a set? Answer: The maximum number of elements to store in the set is (2m+1). Therefore, each set operation is O(log m). The answer is O(n log m). I gave 0.8 points to answers like O(n log n).

  5. Assume that m < n. I have n integers whose values are between -m and m. What is the running time of storing those n integers in a multiset? Answer: Since the multiset stores duplicates, each operation is now O(log n), so the answer is O(n log m). I gave 0.8 points to answers like O(m log n).

  6. A binary search tree starts with n integers. Assume that m < n. What is the running time of deleting m of those integers? Answer: Binary search trees do not have to be balanced. Therefore, the tree could be a line, and each delete can be O(n). The answer is O(mn). I gave 0.5 points to O(m log n), since that is the correct answer when the tree is balanced.

  7. An AVL tree starts with n integers. What is the running time of finding m integers that may or may not be in the AVL tree? Answer: AVL trees are balanced, so each of these is O(log n). The answer is O(m log n). I gave 0.8 points to answers like O(n log n).

  8. I have a map with n elements. What is the running time of deleting the smallest n/2 elements? Answer: Each delete is O(log n), so this is O(n log n).

  9. I have a list with n integers, which is already ordered, and n is an odd number. What is the running time of finding the median of the list? Answer: To find the median, you have to traverse the list halfway -- that is O(n). You got 0.5 points for O(n/2).

  10. I have a vector with n integers, which is already ordered, and n is an odd number. What is the running time of finding the median of the vector? Answer: You can simply go to the middle element -- O(1).

  11. Assume that m < n. Suppose I have a list of n integers whose values are between -m and m, and I want to return an iterator to any integer on the list that is between m-100 and m (or end() if there is no such element). What is the running time of performing this action? Answer: You have to traverse the list until you find an element that fits the criterion. That means you may have to traverse the entire list: O(n).

  12. Suppose I have a map with n elements. The keys are integers and the vals are doubles. What is the running time of creating a vector of the keys, ordered from high to low? Answer: This is simply traversing the map: O(n). 0.5 points for O(2n).

  13. Suppose I have an unordered_set with n doubles. What is the running time of creating a vector of these values, ordered from low to high? Answer: Since the data structure is not sorted, you need to put the elements into a vector and sort the vector. That is O(n log n).

  14. What is the running time of performing a postorder traversal on an AVL tree with n elements? Answer: Traversals are O(n). 0.5 points for O(2n).

  15. In the following, s is a string of size n, and v is an empty vector of strings. What is the running time of this loop:

    for (i = 0; i < s.size(); i++) v.push_back(s.substr(i));
    (In case you've forgotten, s.substr(i) returns the substring of s starting with the character at index i and going to the end of the string). Answer: The first string has n characters. The next has (n-1). And so on. So the total number of characters is O(n^2).

  16. Suppose s is a string composed of n characters whose values are either 'a' or 'b'. And suppose v is an empty vector of strings. And finally suppose m is a positive integer. What is the running time overhead of v.resize(m, s)? Answer: You are making m copies of a string with n characters. That's O(nm).

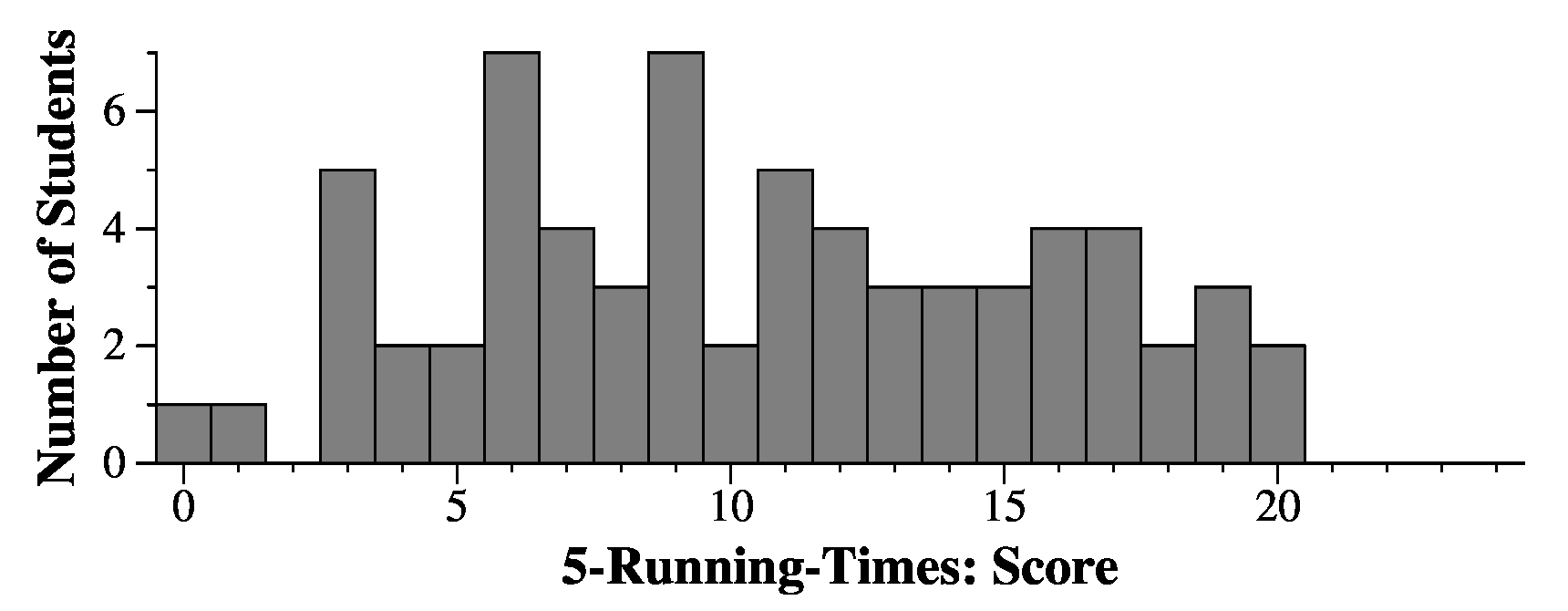

Grading

Each question was 1.5 points. Partial credit is desribed above.


Question 6 - AVL Trees

These came from a bank -- I'll explain the answers from the example exam, and then give bank answers at the end.

Part A: Here the tree is simple enough to draw quickly. Here's ASCII-Art:

AWD
   \
   DBQ
      \
      JLB

Node AWD is imbalanced, and it's clearly a Zig-Zig, so you rotate once about DBQ:

   DBQ
  /   \
AWD   JLB

So the answers:

a->left->key:   ---
a->right->key:  ---
a->parent->key: DBQ
b->left->key:   AWD
b->right->key:  JLB
b->parent->key: ---

Part B: As I said in the exam, drawing the whole tree here is a waste of time. So instead, start with the root and its children:

   RGD
  /   \
OTC   SIE
10     8

It's imbalanced toward OTC, so go ahead and add OTC's children:

       RGD
      /   \
    OTC   SIE
   /   \   8
 NTD   PRQ
  8     9

This is Zig-Zag, so we're going to need to rotate twice about PRQ. Before we do that, let's add PRQ's children:

       RGD
      /   \
    OTC   SIE
   /   \   8
 NTD   PRQ
  8   /   \
    PIH   QME

Now let's rotate. For double rotations, I simply put PRQ as the root, have OTC and RGD be its children, and fill in the rest:

       PRQ
      /   \
     /     \
    /       \
  OTC       RGD
 /   \     /   \
NTD  PIH QME  SIE

Now I can answer the questions:

a->left->key:   QME
a->right->key:  SIE
a->parent->key: PRQ
b->left->key:   OTC
b->right->key:  RGD
b->parent->key: TND -- That was RGD's original parent

Part C: Let's do the same thing -- Draw IZY and its children:

   IZY
  /   \
FMS   MGK
 9     7

The imbalance is toward FMS, so draw its children:

       IZY
      /   \
    FMS   MGK
   /   \   7
 DIB   HQS
  8     7

This is zig-zig, so rotate once about FMS:

    FMS
   /   \
 DIB   IZY
  8   /   \
    HQS  MGK
     7    7

Now we answer questions:

a->left->key:   HQS
a->right->key:  MGK
a->parent->key: FMS
b->left->key:   DIB
b->right->key:  IZY
b->parent->key: ODB -- That was RGD's original parent

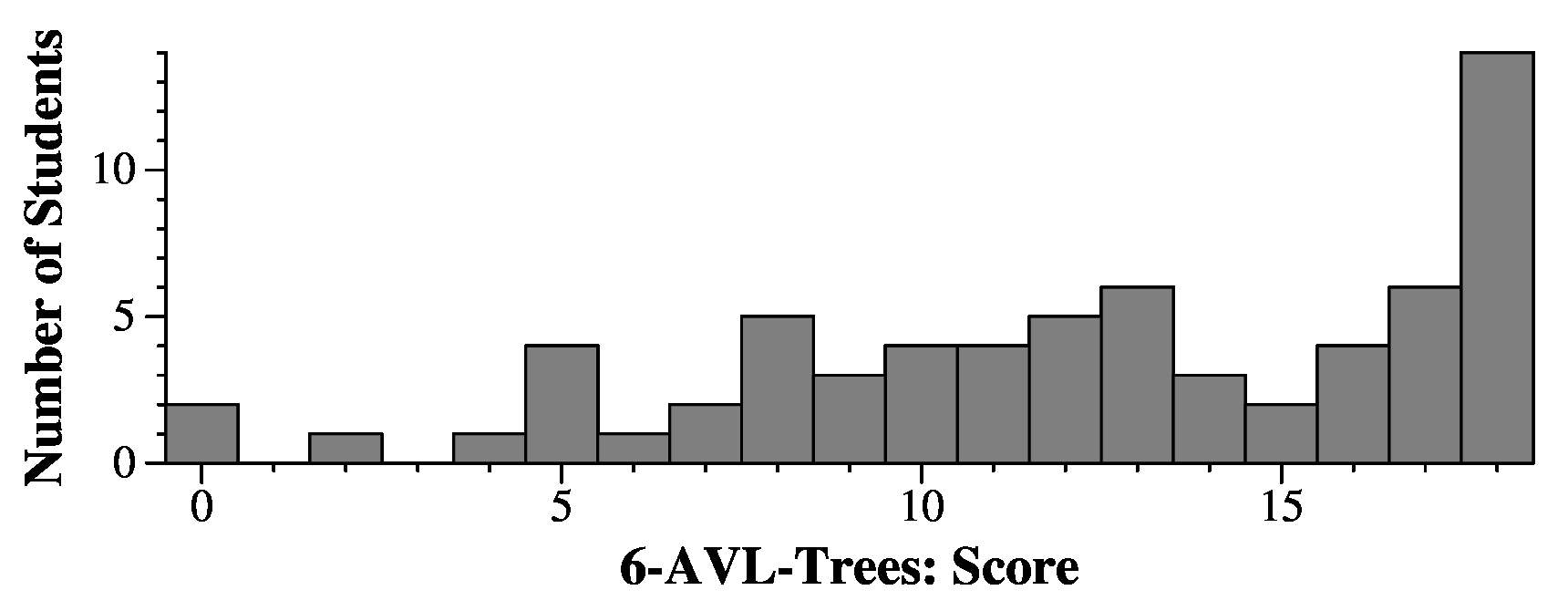

Grading

One point per question. Here are all of the answers, keyed on the node in question:

Part A: a->left->key:   BLZ---- NWX---- VNG---- FJX---- AWD---- SCZ----
Part A: a->right->key:  BLZ---- NWX---- VNG---- FJX---- AWD---- SCZ----
Part A: a->parent->key: BLZ-CBE NWX-TYP VNG-LDQ FJX-FXT AWD-DBQ SCZ-LJP
Part A: b->left->key:   CBE-BLZ TYP-NWX LDQ-ECB FXT-FJX DBQ-AWD LJP-AKU
Part A: b->right->key:  CBE-CBV TYP-ZNA LDQ-VNG FXT-MRJ DBQ-JLB LJP-SCZ
Part A: b->parent->key: CBE---- TYP---- LDQ---- FXT---- DBQ---- LJP----
Part B: a->left->key:   GZS-GEZ KDK-JKM NSY-NIL WFT-WBM RGD-QME XWH-XKZ
Part B: a->right->key:  GZS-IGC KDK-LDZ NSY-NZV WFT-WOD RGD-SIE XWH-YGU
Part B: a->parent->key: GZS-FQR KDK-IXA NSY-OJB WFT-VSS RGD-PRQ XWH-YNU
Part B: b->left->key:   FQR-DKV IXA-HXP OJB-NSY VSS-VKI PRQ-OTC YNU-XWH
Part B: b->right->key:  FQR-GZS IXA-KDK OJB-OQZ VSS-WFT PRQ-RGD YNU-ZCC
Part B: b->parent->key: FQR-KIS IXA-HGY OJB-MWM VSS-WXY PRQ-TND YNU-WVO
Part C: a->left->key:   YWB-YNG FDV-EGQ XAK-WRZ PFM-PCZ IZY-HQS OLL-NMI
Part C: a->right->key:  YWB-ZRA FDV-GGW XAK-XGG PFM-PJX IZY-MGK OLL-PAN
Part C: a->parent->key: YWB-YEQ FDV-CVP XAK-XMW PFM-OZQ IZY-FMS OLL-PND
Part C: b->left->key:   YEQ-XUG CVP-BIX XMW-XAK OZQ-OSN FMS-DIB PND-OLL
Part C: b->right->key:  YEQ-YWB CVP-FDV XMW-XWN OZQ-PFM FMS-IZY PND-PXM
Part C: b->parent->key: YEQ-WKH CVP-HDI XMW-YCK OZQ-ONI FMS-ODB PND-QQH

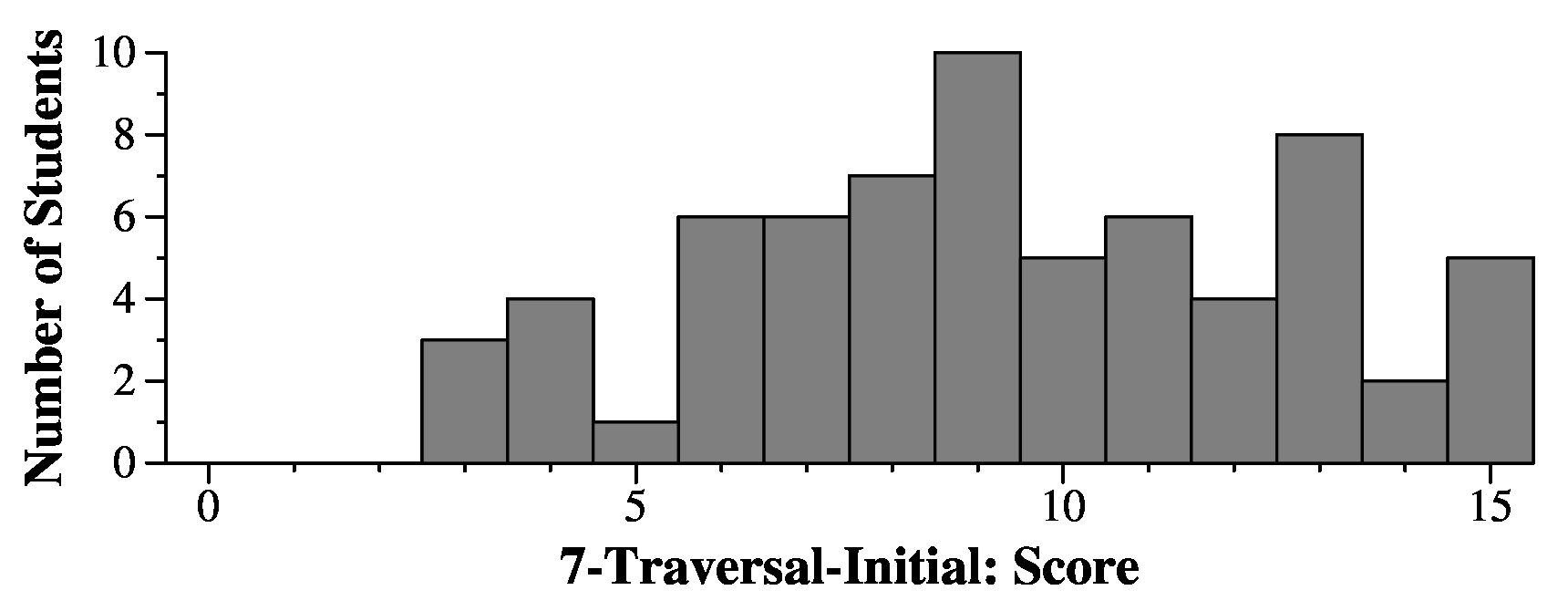

Question 7: Traversal, part 1

There was a typo in the exam, as the info values in the printout were wrong. My original set_info did:

t->info = (pinfo >> 2) | t->children.size();

I changed it to make it less confusing, but forgot to make it "*4" instead of "*2". so the values in the printout of nodes 3, 4, 5 and 8 were wrong. I apologize if that confused you. You can ask if that's a typo in the exam. I would have fixed it then. Fortunately, it doesn't really affect much, but if you used *4 for your calculation instead of *2, you got credit.

A: set_info() is a preorder traversal. You have to calculate the info field of a node before you make the recursive call. 2 points.

B: The friend specification allows methods in the Tree class to access and modify the private and protected fields of the TreeNode class. 2 points. 1.2 points if you got it backwards or said it only allowed access to methods. 0.5 points if you were vague -- for example, here was a vague answer: "It can share the information with other, and can change or use."

C: Yes. 2 points.

D: read_from_stdin() has to call new to create TreeNode's. Therefore, your destructor has to delete the TreeNode's. 2 points. Again, vague or hand-wavy answers received 0.5 pts. For example: "The destructor will be responsible for freeing all the memory once the tree object goes out of scope."

E: 3 or 0x3.

F: 3 * 2 + 2 = 8. I gave full credit to 14 or 0xe in case you multiplied by four.

G: ((8 * 2) + 1) * 2 + 0 = 34. I gave full credit -- a point -- for all answers, since my examples didn't match the code.

H: Suppose your tree is a complete tree where all nodes but the leaves have four children. The root's info will be 4. Its child's info will be 12, or 1100 in binary. Its child's info will be 28, or 11100 in binary. Its child's info will be 111100 in binary. See the pattern? A node at a depth of d will have an info value that is (d+1) ones, followed by two zeros. info is a long long, you're going to overflow when d+3 equals 64. That's d=61. I gave full credit to 15, 16, 17, 29, 30, 31, 32, 33, 61, 62, 63, 64, 65. I gave half credit to other answers between 10 and 65.


Question 8: Traversal, part 2

read_from_stdin(): You need a data structure to store nodes keyed on node id. The best for this is an unordered_map, because you don't need it to be sorted. I did not take off for using a map. Basically, you read [node,parent] pairs, check the map to see that both exist, creating them if they don't, and then add the node to the parent's children vector.

void Tree::Read_From_Stdin()
{
  TreeNode *p, *c;
  unordered_map <int, TreeNode *> s;
  unordered_map <int, TreeNode *>::iterator sit;
  int id, parent;

  while (cin >> id >> parent) {

    c = s[id];
    if (c == NULL) {
      c = new TreeNode(id);
      s[id] = c;
    }

    p = s[parent];
    if (p == NULL) {
      p = new TreeNode(id);
      s[parent] = p;
    }

    p->children.push_back(c);
  }
  root = s[0];
}

print(): Simple postorder traversal: do recursion, print spaces, call Print():

void Tree::print(const TreeNode *n, int level) const
{
  size_t i;

  if (n == NULL) return;

  for (i = 0; i < n->children.size(); i++) print(n->children[i], level+2);
  printf("%*s", level, "");     // A for loop works fine too, or resize a string with spaces.
  n->Print();
}

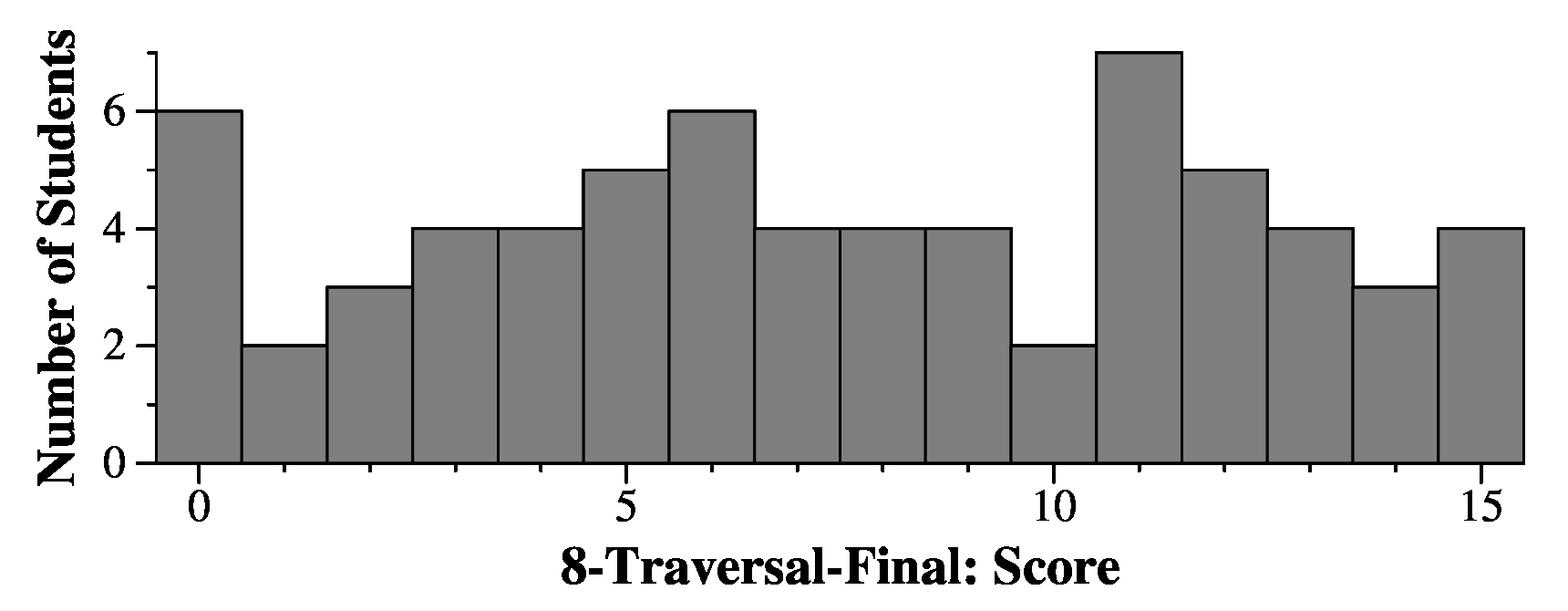

Grading

read_from_stdin() was 9 points and print() was six points. I indicated problems with your code in the grade file.
