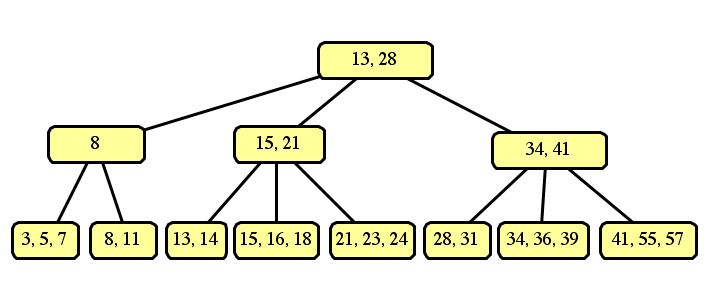

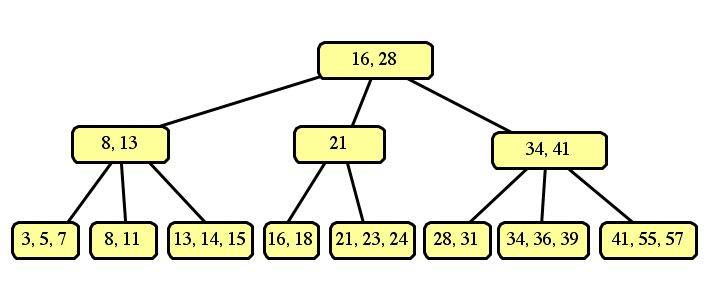

If we split the left sides of each node into three, and the right sides into two, then the resulting tree is:

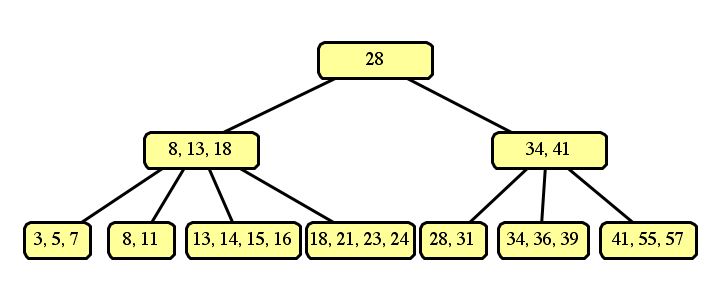

These are the only two correct answers. An optimization of B-trees would "borrow" a slot from a neighboring node, such as:
However, this answer did not receive full credit, since it is not part of the standard definition of B-Trees.
int is_bstree(BTreeNode *root, double *min, double *max) { double subtree_min, subtree_max; if (root->left == NULL) { *min = root->key.d; } else { if (!is_bstree(root->left, &subtree_min, &subtree_max)) return 0; if (subtree_max >= root->key.d) return 0; *min = subtree_min; } if (root->right == NULL) { *max = root->key.d; } else { if (!is_bstree(root->right, &subtree_min, &subtree_max)) return 0; if (subtree_min <= root->key.d) return 0; *max = subtree_max; } return 1; } |
So, it will print out:
You can cut/paste the program and try it yourself if you want.
