CS302 Lecture Notes - Network Flow Part 3: Comparing Augmenting Path Algorithms


Now that we have the basic framework for network flow written, let's evalulate performance with respect to the different algorithms for choosing augmenting paths. We start with netflow_dfs_1.cpp, which is identical to netflow5.cpp from the last lecture, but with three differences:

  1. It takes an optional command line argument "Print", which prints the paths. If the command line argument is not specified, then it will not print the paths.
  2. It does not calculate or print the cut.
  3. It works on integers rather than doubles.

I've also modified makerandom to create random graphs with integer capacities less than 10000. We'll evaluate this on a few graphs. First is g5.txt, which is the same as g3.txt in the last lecture, only I've multiplied each value by 1000 so that they are integers. The flow of this graph is 10,087:

UNIX> netflow_dfs_1 Print < g5.txt
Found path with flow of 4923: s->n02 n02->n01 n01->n00 n00->t
Found path with flow of 6: s->n02 n02->n01 n01->t
Found path with flow of 741: s->n02 n02->n03 n03->n01 n01->t
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->t
Max flow is 10087
UNIX>
We'll also evaluate g10.txt and g100.txt, which were created with the following calls:
UNIX> makerandom 10 0 > g10.txt
UNIX> makerandom 100 0 > g100.txt
UNIX>
We'll take a look at the paths coming from g10.txt, and with g100.txt, we'll look at the number of paths and the running time:
UNIX> netflow_dfs_1 Print < g10.txt
Found path with flow of 2240: s->n01 n01->n00 n00->t
Found path with flow of 1022: s->n01 n01->n00 n00->n03 n03->n02 n02->n04 n04->n07 n07->n05 n05->t
Found path with flow of 552: s->n01 n01->n00 n00->n03 n03->n02 n02->n07 n07->n05 n05->t
Found path with flow of 2740: s->n01 n01->n00 n00->n03 n03->t
Found path with flow of 1311: s->n01 n01->n02 n02->n00 n00->n03 n03->t
Found path with flow of 237: s->n01 n01->n02 n02->n00 n00->n05 n05->n03 n03->t
Found path with flow of 455: s->n01 n01->n02 n02->n00 n00->n05 n05->n04 n04->n03 n03->t
Found path with flow of 428: s->n01 n01->n02 n02->n00 n00->n05 n05->n07 n07->n03 n03->t
Found path with flow of 1574: s->n04 n04->n00 n00->n01 n01->n02 n02->n03 n03->t
Found path with flow of 873: s->n04 n04->n00 n00->n01 n01->n02 n02->n07 n07->n03 n03->t
Max flow is 11432
UNIX> netflow_dfs_1 Print < g100.txt | wc
    4375  325064 2793151
UNIX> time netflow_dfs_1 < g100.txt
Max flow is 157463
0.145u 0.002s 0:00.14 100.0%	0+0k 0+0io 0pf+0w
UNIX>

DFS #2: Getting rid of zero capacity edges on the adjacency lists

It was easy to write our code so that we never delete edges from the adjacency lists. Is that best from a performance perspective? To test this, I've written netflow_dfs_2.cpp. Adjacency lists are now lists instead of vectors, because we will be deleting arbitrary elements. We still create all of the edges and backedges. However, in the constructor, we only put an edge onto an adjacency list if it has nonzero capacity:

class Edge {
  public:
    string name;
    Node *n1;
    Node *n2;
    Edge *reverse;
    int original;
    int residual;
    int flow;
    list <Edge *>::iterator iterator;
};

...

Graph::Graph()
{
...

  for (i = 0; i < Edges.size(); i++) {
    e = Edges[i];
    if (e->original > 0) {
      e->n1->adj.push_front(e);
      e->iterator = e->n1->adj.begin();
    }
  }
}

When I put an edge onto an adjacency list, I use push_front(), and then store the iterator to the newly created node with the edge. That way, I can delete edges in constant time with "e->n1->adj.erase(e->iterator)."

The other relevant code changes are in the DFS, which now does not have to check for positive capacity edges:

int Graph::DFS(Node *n)
{
  Edge *e;
  int f;
  list <Edge *>::iterator eit;

  if (n->visited) return 0;
  n->visited = 1;
  if (n == Sink) return 1;

  for (eit = n->adj.begin(); eit != n->adj.end(); eit++) {
    e = *eit;
    if (DFS(e->n2)) {
      Path.push_back(e);
      return 1;
    }
  }
  return 0;
}

And in Find_Augmenting_Path(), which now has to remove zero capacity edges when it updates the residual graph. It also has to add reverse edges to the residual graph when their capacities were zero. This is where having the iterator in the edge comes in handy. I've bold-faced the new code:

int Graph::Find_Augmenting_Path()
{
  int i;
  int f;
  Edge *e;

  for (i = 0; i < Nodes.size(); i++) Nodes[i]->visited = 0;
  Path.clear();

  if (DFS(Source)) {
    f = Path[0]->residual;
    for (i = 1; i < Path.size(); i++) {
      if (Path[i]->residual < f) f = Path[i]->residual;
    }
    for (i = 0; i < Path.size(); i++) {
      e = Path[i];
      e->residual -= f;
      e->flow += f;
      if (e->residual == 0) e->n1->adj.erase(e->iterator);

      e->reverse->residual += f;
      if (e->reverse->residual == f) {
        e->n2->adj.push_front(e->reverse);
        e->reverse->iterator = e->n2->adj.begin();
      }

    }
    if (Print_Paths) {
      printf("Found path with flow of %d:", f);
      for (i = Path.size()-1; i >= 0; i--) printf(" %s", Path[i]->name.c_str());
      printf("\n");
    }
    return f;
  } else {
    return 0;
  }
}

When we run it, it's correct, but look at the time and number of paths!

UNIX> netflow_dfs_2 Print < g5.txt
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->t
Found path with flow of 741: s->n04 n04->n02 n02->n03 n03->n01 n01->t
Found path with flow of 2875: s->n04 n04->n02 n02->n01 n01->t
Found path with flow of 438: s->n02 n02->n01 n01->t
Found path with flow of 1616: s->n02 n02->n01 n01->n00 n00->t
Max flow is 10087
UNIX> netflow_dfs_2 < g10.txt
Max flow is 11432
UNIX> time netflow_dfs_2 < g100.txt
Max flow is 157463
0.402u 0.003s 0:00.40 100.0%	0+0k 0+1io 0pf+0w
UNIX> time netflow_dfs_2 Print < g100.txt | wc
   41801 3628627 31364656
UNIX>
Oh my. I had first mistakenly blamed the poor performance of this on the memory operations. Instead, it's the number of paths! Now, why would the number of paths be so great? I have a hunch that it's because I'm calling push_front() and traversing edges from front to back. Think about it from a logical standpoint. Suppose my first path through the graph has 50 edges. The flow is likely to be small -- like 200. The reverse edges that are put onto the graph all have flow of 200 and they are in the *front* of the adjacency list. That means the next path will probably have a flow of less than 200. And so on -- the paths are going to have small flows because of these reverse edges.

Let's test that hunch. How about traversing the adjacency list from back to front in DFS()? I do that in netflow_dfs_2a.cpp:

UNIX> diff netflow_dfs_2.cpp netflow_dfs_2a.cpp
118c118
<   list ::iterator eit;
---
>   list ::reverse_iterator eit;
124c124
<   for (eit = n->adj.begin(); eit != n->adj.end(); eit++) {
---
>   for (eit = n->adj.rbegin(); eit != n->adj.rend(); eit++) {
UNIX>
When I run it, it has a lot fewer paths and runs pretty fast:
UNIX> netflow_dfs_2a Print < g5.txt
Found path with flow of 4923: s->n02 n02->n01 n01->n00 n00->t
Found path with flow of 6: s->n02 n02->n01 n01->t
Found path with flow of 741: s->n02 n02->n03 n03->n01 n01->t
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->t
Max flow is 10087
UNIX> netflow_dfs_2a < g10.txt
Max flow is 11432
UNIX> time netflow_dfs_2a < g100.txt
Max flow is 157463
0.034u 0.003s 0:00.03 100.0%	0+0k 0+0io 0pf+0w
UNIX> time netflow_dfs_2a Print < g100.txt | wc
    1388  100213  860611
UNIX>
Wow. 1388 paths as opposed to 41801. Let's confirm our suspicion by graphing the flow in the first 100 paths (you can blow up the graph by clicking on it):

Interesting.


DFS #3: Using a vector, but not including zero capacity edges

I claimed in class that vectors have a superiority over lists because they inhabit contiguous memory locations, and they don't require all of those pointer operations (new/delete) that lists do. The program netflow_dfs_3.cpp goes back to vectors for the adjacency lists. However, it partitions each vector into two sets of edges. The first edges in the vector have non-zero capacity in their residual graphs. The remaining edges have zero capacity. We maintain a variable in each node called non_zero_edges -- that specifies the number of non-zero edges in each node's adjacency list. When we visit the node in the DFS, we only consider the first non_zero_edges in the adjacency list:

int Graph::DFS(Node *n)
{
  Edge *e;
  int f;
  int i;

  if (n->visited) return 0;
  n->visited = 1;
  if (n == Sink) return 1;

  for (i = 0; i < n->non_zero_edges; i++) {
    e = n->adj[i];
    if (DFS(e->n2)) {
      Path.push_back(e);
      return 1;
    }
  }
  return 0;
}

In the constructor, we create the adjacency list in three passes. We first put on the non-zero capacity edges. Then we set non_zero_edges for each node, and then we put on the zero capacity edges:

Graph::Graph()
{
...
  for (i = 0; i < Edges.size(); i++) {  /* Pass 1 */
    e = Edges[i];
    if (e->original > 0) {
      e->index = e->n1->adj.size();
      e->n1->adj.push_back(e);
    }
  }
  for (i = 0; i < Nodes.size(); i++) {  /* Pass 2 */
    n = Nodes[i];
    n->non_zero_edges = n->adj.size();
  }
  for (i = 0; i < Edges.size(); i++) {  /* Pass 3 */
    e = Edges[i];
    if (e->original == 0) {
      e->index = e->n1->adj.size();
      e->n1->adj.push_back(e);
    }
  }
}

Finally, the hard code is in Find_Augmenting_Path() when the residual is processed. Instead of deleting an edge when we set its capacity to zero, we instead swap it with the non-zero edge in the vector position non_zero_edges-1. We then decrement non_zero_edges. Similarly, when we add flow to a zero-capacity edge, we swap it with the edge in position non_zero_edges, and then we increment non_zero_edges. In that way, we maintain the two sets, but we're not performing deleting or insertion into a list.

Yes, the code is ugly:

int Graph::Find_Augmenting_Path()
{
  int i;
  int f;
  Edge *e, *eswap;
  Node *n;
  int ie, ieswap;

  for (i = 0; i < Nodes.size(); i++) Nodes[i]->visited = 0;
  Path.clear();

  if (DFS(Source)) {
    f = Path[0]->residual;
    for (i = 1; i < Path.size(); i++) {
      if (Path[i]->residual < f) f = Path[i]->residual;
    }
    for (i = 0; i < Path.size(); i++) {
      e = Path[i];
      e->residual -= f;
      e->flow += f;

      if (e->residual == 0) {
        n = e->n1;
        n->non_zero_edges--;
        ie = e->index;
        ieswap = n->non_zero_edges;
        if (ie != ieswap) {
          eswap = n->adj[ieswap];
          n->adj[ieswap] = e;
          n->adj[ie] = eswap;
          e->index = ieswap;
          eswap->index = ie;
        }
      }

      e->reverse->residual += f;

      if (e->reverse->residual == f) {
        n = e->n2;
        ieswap = n->non_zero_edges;
        ie = e->reverse->index;
        n->non_zero_edges++;
        if (ie != ieswap) {
          eswap = n->adj[ieswap];
          n->adj[ieswap] = e->reverse;
          n->adj[ie] = eswap;
          e->reverse->index = ieswap;
          eswap->index = ie;
        }
      }

    }
    if (Print_Paths) {
      printf("Found path with flow of %d:", f);
      for (i = Path.size()-1; i >= 0; i--) printf(" %s", Path[i]->name.c_str());
      printf("\n");
    }
    return f;
  } else {
    return 0;
  }
}

When we run it, it's hard to compare to netflow_dfs_2a because netflow_dfs_2a has more paths:

UNIX> netflow_dfs_3 Print < g5.txt
Found path with flow of 4923: s->n02 n02->n01 n01->n00 n00->t
Found path with flow of 6: s->n02 n02->n01 n01->t
Found path with flow of 741: s->n02 n02->n03 n03->n01 n01->t
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->t
Max flow is 10087
UNIX> netflow_dfs_3 < g10.txt
Max flow is 11432
UNIX> time !!:s/10/100
time netflow_dfs_3 < g100.txt
Max flow is 157463
0.065u 0.002s 0:00.06 100.0%	0+0k 0+1io 0pf+0w
UNIX> netflow_dfs_3 Print < g100.txt | wc
    4447  357264 3080610
UNIX>
If we normalize by the number of paths, netflow_dfs_2a takes 0.000024 seconds per path, while netflow_dfs_3 takes 0.000015. When we implement Dijkstra's algorithm, we'll implement it starting with both of these to see how the two techniques fare with an apples to apples comparison.

Greedy DFS

Using Greedy DFS, we start with netflow_dfs_2a as a guide and we change the adjacency list to be represented with a multimap keyed on flow in the edge. There are very few changes. First in the constructor, we insert edges instead of calling push_front() (the code is in netflow_greedy.cpp):

Graph::Graph()
{
...
  for (i = 0; i < Edges.size(); i++) {
    e = Edges[i];
    if (e->original > 0) {
      e->iterator = e->n1->adj.insert(make_pair(e->original, e));
    }
  }
}

Next, in DFS() we traverse the multimap from back to front:

int Graph::DFS(Node *n)
{
  Edge *e;
  int f;
  multimap <int, Edge *>::reverse_iterator eit;

  if (n->visited) return 0;
  n->visited = 1;
  if (n == Sink) return 1;

  for (eit = n->adj.rbegin(); eit != n->adj.rend(); eit++) {
    e = eit->second;
    if (DFS(e->n2)) {
      Path.push_back(e);
      return 1;
    }
  }
  return 0;
}

Finally, in Find_Augmenting_Path(), we perform operations on the multimap rather than on a list:

int Graph::Find_Augmenting_Path()
{
  int i;
  int f;
  Edge *e;

  for (i = 0; i < Nodes.size(); i++) Nodes[i]->visited = 0;
  Path.clear();

  if (DFS(Source)) {
    f = Path[0]->residual;
    for (i = 1; i < Path.size(); i++) {
      if (Path[i]->residual < f) f = Path[i]->residual;
    }
    for (i = 0; i < Path.size(); i++) {
      e = Path[i];
      e->residual -= f;
      e->flow += f;
      if (e->residual == 0) e->n1->adj.erase(e->iterator);

      e->reverse->residual += f;
      if (e->reverse->residual == f) {
        e->reverse->iterator = e->n2->adj.insert(make_pair(f, e->reverse));
      }

    }
    if (Print_Paths) {
      printf("Found path with flow of %d:", f);
      for (i = Path.size()-1; i >= 0; i--) printf(" %s", Path[i]->name.c_str());
      printf("\n");
    }
    return f;
  } else {
    return 0;
  }
}

When we run it, it's a little bittersweet. Indeed it finds fewer paths, because it's looking for big edges. However, since its managing a multimap rather than a list, the DFS() is more expensive. Therefore, the timing is slower than both DFS 2A and 3:

UNIX> netflow_greedy Print < g5.txt
Found path with flow of 4923: s->n04 n04->n02 n02->n01 n01->n00 n00->t
Found path with flow of 6: s->n04 n04->n02 n02->n01 n01->t
Found path with flow of 741: s->n04 n04->n02 n02->n03 n03->n01 n01->t
Found path with flow of 2363: s->n04 n04->n03 n03->n01 n01->t
Found path with flow of 2054: s->n02 n02->n04 n04->n03 n03->n01 n01->t
Max flow is 10087
UNIX> netflow_greedy  < g10.txt
Max flow is 11432
UNIX> time netflow_greedy < g100.txt
Max flow is 157463
0.069u 0.003s 0:00.07 85.7%	0+0k 0+1io 0pf+0w
UNIX> netflow_greedy Print < g100.txt | wc
    1112   96497  835531
UNIX>

Using a modification to Dijkstra's algorithm to find the maximum flow path

I've written two of these. One takes netflow_dfs_2a as a starting point, using lists for the adjacency lists and removing zero-capacity edges. The other uses netflow_dfs_3 as a starting point, with its partitioned vectors. Instead of DFS(), there is a procedure Dijkstra(), which uses a multimap to find the maximum flow path from the source to the sink. The standard version of Dijkstra's algorithm finds the shortest path between any two nodes. It uses a multimap of nodes along with the shortest known paths to these nodes. At each step, it removes the node with the shortest known path. That is indeed the shortest path to that node, so the node is removed, and then its edges are processed to see if nodes in the map should be updated, because there is a shorter path through this node.

In the modified version, the multimap contains nodes along with the maximum known flow to these nodes. The node with the greatest flow is the one that we process, and we traverse its edges to see if we should update nodes in the multimap because we can get more flow to them through this node.

Here's Dijkstra() in the list version. I'm not going to walk you through the code. You should have learned enough about Dijkstra's shortest path algorithm to figure out how this works (code in netflow_dijkstra_list.cpp):

class Node {
  public:
    string name;
    list <class Edge *> adj;
    int maxflow;
    class Edge *backedge;
    multimap <int, Node *>::iterator iterator;
};

...

int Graph::Dijkstra()
{
  Edge *e;
  Node *n, *n2;
  int i, f, newflow;
  list <Edge *>::iterator eit;
  multimap <int, Node *> Q;
  multimap <int, Node *>::iterator qit;

  for (i = 0; i < Nodes.size(); i++) Nodes[i]->maxflow = 0;

  Q.insert(make_pair(0, Source));

  while (!Q.empty()) {
    qit = Q.begin();
    f = -qit->first;
    n = qit->second;
    Q.erase(qit);
    if (n == Sink) {
      while (n != Source) {
        Path.push_back(n->backedge);
        n = n->backedge->n1;
      }
      return 1;
    }
    for (eit = n->adj.begin(); eit != n->adj.end(); eit++) {
      e = *eit;
      n2 = e->n2;
      if (f == 0 || e->residual < f) {
        newflow = e->residual;
      } else {
        newflow = f;
      }
      if (newflow > n2->maxflow) {
        if (n2->maxflow != 0) Q.erase(n2->iterator);
        n2->maxflow = newflow;
        n2->backedge = e;
        n2->iterator = Q.insert(make_pair(-newflow, n2));
      }
    }
  }
  return 0;
}

When we run it, you can see that it dramatically reduces both the number of paths and the time of the program:

UNIX> netflow_dijkstra_list Print < g5.txt
Found path with flow of 4929: s->n02 n02->n01 n01->t
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->n00 n00->t
Found path with flow of 741: s->n04 n04->n02 n02->n03 n03->n01 n01->t
Max flow is 10087
UNIX> netflow_dijkstra_list < g10.txt
Max flow is 11432
UNIX> time netflow_dijkstra_list < g100.txt
Max flow is 157463
0.027u 0.003s 0:00.03 66.6%	0+0k 0+0io 0pf+0w
UNIX> netflow_dijkstra_list Print < g100.txt | wc
      43     420    2573
UNIX>
What about list vs. vector? I've put the vector version in netflow_dijkstra_vector.cpp:
UNIX> netflow_dijkstra_vector Print < g5.txt
Found path with flow of 4929: s->n02 n02->n01 n01->t
Found path with flow of 4417: s->n04 n04->n03 n03->n01 n01->n00 n00->t
Found path with flow of 741: s->n04 n04->n02 n02->n03 n03->n01 n01->t
Max flow is 10087
UNIX> netflow_dijkstra_vector < g10.txt
Max flow is 11432
UNIX> time netflow_dijkstra_vector < g100.txt
Max flow is 157463
0.025u 0.002s 0:00.02 100.0%	0+0k 0+0io 0pf+0w
UNIX> netflow_dijkstra_vector Print < g100.txt | wc
      43     420    2573
UNIX>
The vector version wins!

Edmonds-Karp

Finally, we implement Edmonds-Karp with the vector version. Instead of Dijkstra() we simply do a breadth-first search to find the minimum-hop path. I don't show the code, because you get to implement Edmonds-Karp in your lab. Here's the performance:
UNIX> netflow_edkarp Print < g5.txt
Found path with flow of 4929: s->n02 n02->n01 n01->t
Found path with flow of 741: s->n02 n02->n03 n03->n01 n01->t
Found path with flow of 2801: s->n04 n04->n03 n03->n01 n01->t
Found path with flow of 1616: s->n04 n04->n03 n03->n01 n01->n00 n00->t
Max flow is 10087
UNIX> netflow_edkarp < g10.txt
Max flow is 11432
UNIX> time netflow_edkarp < g100.txt
Max flow is 157463
0.025u 0.002s 0:00.02 100.0%	0+0k 0+0io 0pf+0w
UNIX> netflow_edkarp Print < g100.txt | wc
      93     832    4845
UNIX>
All of this makes sense -- there are more paths than when Dijkstra's algorithm is used, because it's not finding maximum flow paths. However, the act of finding paths is faster; hence why the running time is roughly the same.

Timing comparison

To do a more meaty timing comparison, I varied the graph size, from makerandom 30 up to makerandom 150. I call the parameter to makerandom the "number of interior nodes." For all of the DFS variants, I ran 1000 instances of the network flow program, one for each seed of makerandom from 1 to 1000. For Dijkstra and Edmonds-Karp, I run 10,000 instances, because there was still noise with only 1000. And then I averaged the timings.

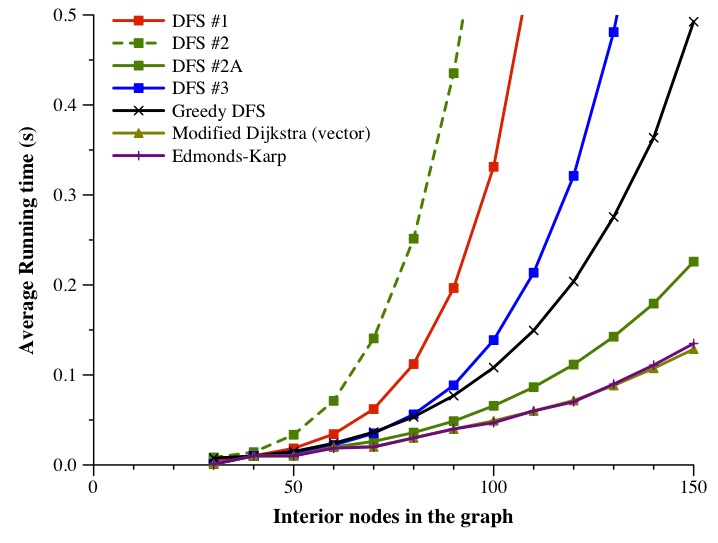

The results (on my Linux box in 2012) are plotted below:

The conclusion here is pretty clear -- for graphs of this type, Modified Dijkstra and Edmonds-Karp are clearly the best algorithms to use. I'm pretty impressed, though, at how well DFS #2A performs, given how simple it is.


Algorithms and Paths

It's a very easy test question for me to, for example, give you the paths and have you give tell me about the augmenting path algorithm. Here's an example test question:

Suppose I create a graph in g15.txt using makerandom:

UNIX> makerandom 15 0 > g15.txt
UNIX> grep s g15.txt
SOURCE s
EDGE s n03 2644
EDGE s n04 6510
EDGE s n05 1223
EDGE s n09 5983
EDGE s n10 509
EDGE s n12 7952
EDGE s n13 2479
UNIX>
I am going to make the following calls from the Unix prompt: For each of the four outputs, tell me which call created the output, and why:

Output 1:
Found path with flow of 7952: s->n12 n12->n14 n14->n02 n02->n00 n00->n11 n11->t
Found path with flow of 6510: s->n04 n04->n07 n07->n13 n13->n08 n08->t
Found path with flow of 5983: s->n09 n09->n14 n14->n01 n01->t

Output 2:
Found path with flow of 2644: s->n03 n03->n01 n01->t
Found path with flow of 2479: s->n13 n13->n01 n01->t
Found path with flow of 2240: s->n12 n12->n00 n00->t

Output 3:
Found path with flow of 7952: s->n12 n12->n14 n14->n06 n06->n02 n02->n00 n00->n11 n11->t
Found path with flow of 313: s->n04 n04->n07 n07->n03 n03->n14 n14->n06 n06->n02 n02->n00 n00->n11 n11->t
Found path with flow of 1499: s->n04 n04->n07 n07->n03 n03->n14 n14->n06 n06->n02 n02->n00 n00->n09 n09->n11 n11->t

Output 4:
Found path with flow of 2240: s->n03 n03->n01 n01->n00 n00->t
Found path with flow of 404: s->n03 n03->n01 n01->n00 n00->n14 n14->n02 n02->t
Found path with flow of 511: s->n13 n13->n01 n01->n00 n00->n14 n14->n02 n02->t

To answer this, start with Edmonds-Karp. That will have the shortest paths, so it will be output 2. Modified Dijkstra will have paths of decreasing flow, which can only be output 1. The greedy DFS will start with the edge "s->n12", since that is the largest edge leaving s. Thus, it's output 3. That leaves output 4 for the vanilla DFS.

The answer (the "why" is above):
