CS560 Final Exam, May 4, 2009

Question 1

The four conditions are:

Mutual Exclusion
Hold and wait
No preemption
Circular wait

The solution that only allows a philosopher to pick up the chopsticks when they are both available (solution #5 in the lecture notes, and all the later solutions) prevents "Hold and Wait" from occurring.

The solution that has even philosophers pick up the chopsticks in one order, and odd philosopher pick them up in a different order (solution #4 in the lecture notes) prevents circular waiting.

Some of you tried to say that a solution broke Mutual Exclusion. The only way to do that would be if philosophers could simultaneously pick up the same chopstick, which goes against the definition.

You can break the "no preemption" if you make it so that a philosopher who holds a stick and is waiting for another may be signaled to drop his or her stick. I gave credit for that answer if you defined it precisely (e.g. "no preemption can be broken if you make a philosopher drop his chopstick" is not precise enough. Is he eating? That would be a problem).

Grading

8 points. One for each condition and two for each solution.

This question was an easy one.

Question 2

Unix inodes employ a hybrid file allocation scheme. The inode itself consists of 16 pointers (you didn't have to have the exact number correct). The first thirteen point directly to the first thirteen blocks of the file. The next pointer is a single indirect pointer -- it points to a block that contains pointers to the next blocks in the file. The 15th pointer is a double indirect pointer -- it points to a block that contains single indirect pointers. The 16th pointer is a triple indirect pointer. It points to a block that contains double indirect pointers.

The inode is a nice file allocation scheme because it handles small and large files efficiently. The small files benefit from the direct block pointers -- there is no external or internal fragmentation, and the direct pointers avoid extra disk lookups (as are required when indirect pointers are used, or when a FAT is used). As the file size grows, the single indirect block allows for flexibility -- for example performing random-access I/O only requires two disk operations, with no external fragmentation and very little internal fragmentation.

The double and triple indirect blocks allow the file to grow to colossal sizes with little fragmentation and relatively little extra I/O.

Grading

Inode description: 3 points. Properties: 5 points. You lost 1 if you didn't mention fragmentation. You lost at least 1.5 if you didn't mention the extra disk operations.

Question 3

A RAID-4 or RAID-5 disk array stores k disks' worth of information on k+1 disks in such a way that the failure of any one disk is tolerated without data loss.

With RAID-4, there is a dedicated disk drive P that contains the bitwise parity of the other drives. Let's name the data drives D₁ ... D_k. Then the first byte of drive P is the bitwize exclusive-or of the first bytes of drives D₁ through D_k.

If any disk drive fails, we may recover its contents as the bitwise parity of the surviving drives. Parity is beautiful.

With RAID-5, you simply rotate the identity of the drives at regular intervals. That alleviates hot spots on the disk.

RAID arrays are motivated by the need to provide large-scale storage out of small storage components. It's cheaper to do that than it is to build big disks. It also provides faster storage because it is quicker to write k blocks to k drives in parallel than it is to write them to one drive. Of course, when you add components, you increase the likelihood for failure; hence why we need the P drive.

RAID drives do a good job of writing multiple blocks, because it requires just the extra calculation (which is fast) and the extra I/O to the P disk. Writing single blocks is more expensive, because to do so, you need to read the old value of the data and the parity, subtract the old data and add the new data, and then rewrite the parity. We hope that good caching in the RAID controller mitigates this.

Finally, the killer of RAID-4 and RAID-5 is the latent sector failure. This is when a sector fails, due to a head crash or a failed write, and it is not detected at the time. Then, if another drive fails, we cannot reconstruct the data. This is the motivating scenario for RAID-6.

Grading

You didn't need to know the distinction between RAID-4 and RAID-5. Points as follows:

Defintion: 3 points
Recovery from failure: 1 point
Motivation (cheaper and faster): 2 points. The motivation is not fault-tolerance. The motivation is cost and speed, and the fault-tolerance is a means for providing that. Regardless, I gave 0.5 points for calling fault-tolerance a motivation.
Writing multiple blocks (e.g. writing a stripe): 0.5 points
Writing one block: 0.5 points
Latent sector failures: 1 point. I gave 0.3 points if you said that multiple disk failures were the problem. That's not the problem, since the probability of multiple disk failures is extremely small.

Question 4

Optimal: When you need to fault in a page, you evict the page that is going to be used the furthest in the future. Here is a figure showing optimal replacement on the given trace. The answer from the list is: m.

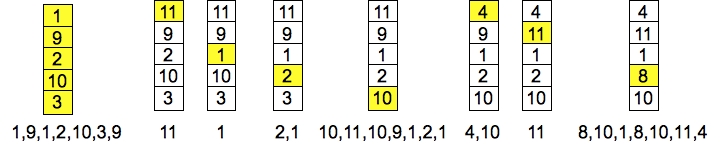

LRU: When you need to fault in a page, you evict the page that you accessed the furthest in the past. The answer is b.

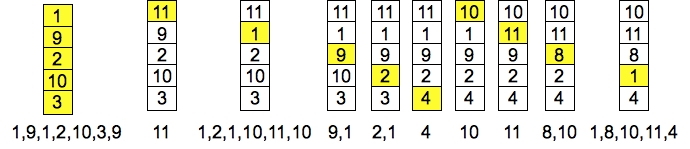

FIFO: pretty obvious. The answer is e.

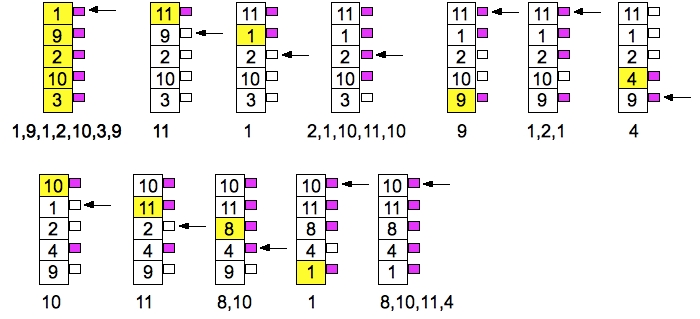

Clock: Now we make use of the "reference" bit and a pointer that treats the frame pool as a circular buffer. When we need a new frame, we start with the pointer and cycle through the buffer until we find a page with an unused reference bit. That is the page that we replace. As we cycle through, we clear the set reference bits. This is depicted below. The answer is f.

Grading

2 points for each. No partial credit, except g for Clock was worth 1.5 points.

Question 5

Part 1: 2¹⁷ divided by 2⁶ equals 2¹¹: 2048 pages.
Part 2: The offset is six bits (since 64 equals 2⁶). The segment is one bit. Therefore the page is 24-7 = 17 bits. Here's a pointer:
Now, a lot of you got confused and said that the page had to occupy 11 bits (since there are 2048 pages), and then you didn't know what to do with those six extra bits. You got creative, and many of you gave reasonable responses after that. I gave some points to that. However, remember, a virtual address does not have to have a physical page associated with it, so we can use more than 11 bits to represent the page. For example, I could have set the first 2048 PTE's to be invalid. Then page 0x800 (the 2049-th) page could have a valid PTE, and address 0x20000 would be valid -- that's page 2048, offset 0. This is an important point.
Part 3: Address 0x7fffff is a pointer whose segment bit is zero, but the rest of the bits are all ones. That means that its page number is 2¹⁷-1. Since the page table is stored in contiguous pages, we need to be able to store 2¹⁷ page table entries (PTE's). Each PTE is two bytes, which means we need 2¹⁸ bytes to store the page table. We can't do that, since we only have 2¹⁷ bytes of main memory. That means we simply cannot use address 0x7fffff in a program without generating a segmentation fault.
Again, many of you said "Page 2¹⁷-1 is bigger than 2¹¹-1 so the address can't exist." That's not the issue, and although it will trouble you, it received no credit. The issue is that your page table has to occupy consecutive physical memory addresses, and since the page table itself is greater than 128K, it cannot be held.
Part 4: Again, there are only 2048 pages of memory, so page 2047 is the last page of main memory. If we set the S0BR to 2047, then it is pointing to the last page in memory. Thus, if the S0LR is 2, then any address that tries to get a page from the second page of the page table will access memory that is outside the range of main memory. We can store 32 PTEs in a page so let's suppose we try to access address 0x80 (in binary, that's 1000 0000 0000, and if we split it into segment-page-offset, it's 0 00000000000100000 000000). That's page 32, whose PTE will be on page 2048 -- outside the scope of main memory.
Part 5: That's page 0, whose PTE is the first PTE on page 2. Its valid bit is set to zero, so the memory access will generate a segmentation violation.
Part 6: Let's turn it into bits: 0x80000c = 1000 0000 0000 0000 0000 1100. Now, let's turn at into segment-page-offset: 1 00000000000000000 001100. That is page 0 of segment 1, which is the first PTE in physical page five. Its valid bit is set, so the physical page number of 0x2c0. So, the physical address is [ 0010 1100 0000 ][ 001100 ], which is 0010 1100 0000 ][ 001100 ], which is 00 1011 0000 0000 1100: 0xb00c.
Part 7: Again, turn it into bits: 0x6c = 0110 1100. Segment 0, page 1, offset 101100 = 0x2c. Page 1 may be found as the second PTE in physical page 2: 0x404. So, the physical address is [ 0100 0000 0100 ] [ 10 1100 ], which is 01 0000 0001 0010 1100. . This is 0x1012c.
Part 8: Again, turn it into bits: 0x800825 = 1000 0000 0000 1000 0010 0101. Segment zero, page 100000 = 32. Since there are 32 PTE's in a page, this is the first PTE on page 6: 0x10c. The physical address is [ 0001 0000 1100 ] [ 10 0101 ], which is 00 0100 0011 0010 0101. This is 0x4325.

Grading

2 points per part for the first four, and 1 point for the last four. If you gave the wrong answer for part 2, you got zero points for that part, but then your remaining answers your graded as if your answer to part 2 was correct. In other words, if you said that there were 7 segment bits, then 0x80000c would clearly seg fault.

You got 0.3 points if your physical address was wrong but the last hex digit was correct.
